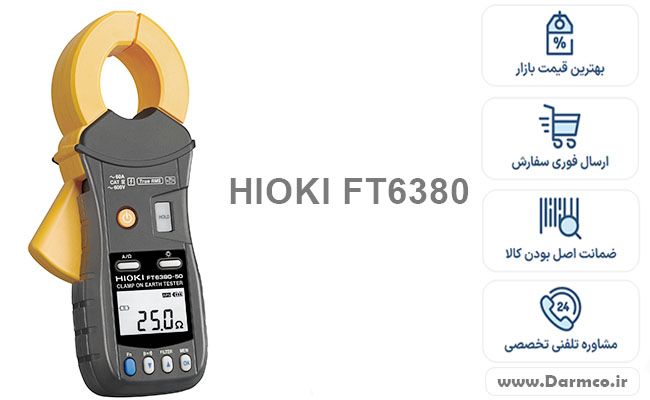

ارت سنج کلمپی دیجیتالی هیوکی مدل HIOKI FT6380

اصل اندازه گیری

Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated
Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.

محدوده مقاومت زمین

0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω

محدوده جریان AC

20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA,
Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)

ماکزیموم جریان ورودی (اندازه گیری جریان)

100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency)

حداکثر ولتاژ نامی ترمینال به زمین

600 VAC measurement category IV (anticipated transient overvoltage 8000 V)

حافظه داخلی

2000 data

آلارم هشدار

For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold.

دیگر ویژگی ها

Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed))

صفحه نمایش

LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec.

درجه حفاظتی

IP40  ضد آب و ضد گرد و غبار(EN60529) With Jaws Closed

زمان فعالیت مداوم

Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed)
Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications)

منبع تغذیه

LR6 alkaline battery × 2

حداکثر باز شدن گیره کلمپ

φ 32 mm (1.26 in)

ابعاد و وزن

73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)

لوازم جانبی استاندارد

Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction manual
